Smart and Multi-Function Type Electric Actuator
Modular Design Plug & Play Kits Model: UM-N Series 1-8
UM-N series electric drives are DC brushless motors suitable for long-term and high-efficiency operation. This series provides plug-and-play module kits for added functions. On-Off Type (Standard type)

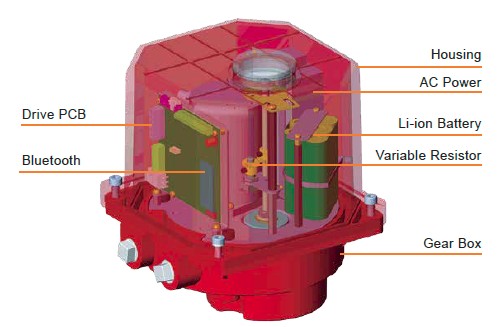

Module kit design
￭ AC power module (110VAC~220VAC)
￭ Power-off reset module (Lithium battery backup power is
used in case of power failure to
protect the system)
￭ Bluetooth module (monitor drive data and on-site control
for reference for pipeline inspection
and maintenance)
Feature:
￭ Power-saving and low-noise, BLDC brushless DC motor, small size suitable for long-term operation
￭ Class F motor insulation rating
￭ The circuit design complies with EMC specifications and anti-interference design drive board
￭ Models above UM-N-3 are equipped with manual devices or outer handwheels for operation in emergency or power failure conditions
￭ Modbus-ASC II is optional for fieldbus mode
￭ The current record can analyze the output current of the equipment during operation, and judge the load condition of the valve switch for maintenance reference (Bluetooth Modular)
￭ Protection mechanism: overload protection, double limit setting, stuck valve protection, mechanical locking, speed control
￭ Quick switch type is available
￭ Ambient temperature:
-10℃≦TA≦60℃ (relative humidity: <90% 25℃), -20℃≦TA≦70℃
(optional)
