Full Bore Safety Relief Valve


Due to gas expansion, the outlet diameter of the full bore safety relief valve is larger than the inlet diameter.  Safety valves are selected based on equipment, fluid properties, operating temperature, set pressure, and discharge capacity. It is necessary to apply various conditions such as the use environment and must be carefully evaluated.


View:

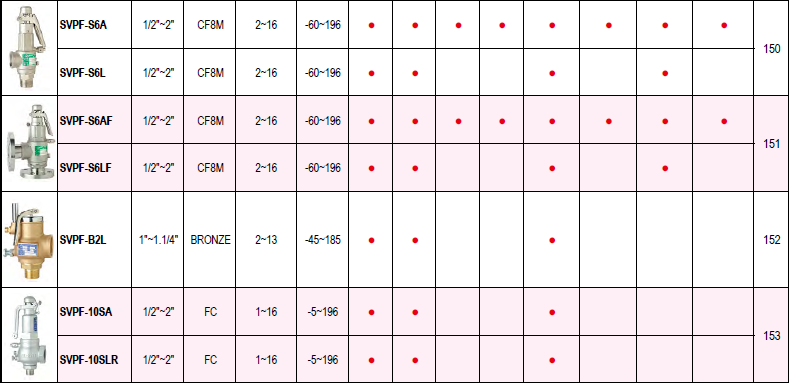

(SVPF-S6A) ПОЛНЫЙ БОРЬБЕ ST.ST.316 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/SEAT: CF8M. (1*2)
DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SVPF-S6L) ПОЛНЫЙ БОРЬБЕ ST.ST.316 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE ST.ST.316 SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/SEAT: CF8M. (1*2)
DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 1/2”~2” (WITH LEVER)

(SVPF-S6AF) ПОЛНЫЙ БОРЬБЕ ST.ST.316 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED BODY/SEAT: CF8M.
(1*2) DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 3/4”~2” (WITHOUT LEVER)

(SVPF-S6LF) ПОЛНЫЙ БОРЬБЕ ST.ST.316 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE SAFETY RELIEF VALVE
FLANGED END TO JIS 10K OR ANSI
150 LBS. DRILLED BODY/SEAT: CF8M.
(1*2) DISC/SEAL: SUS316+PTFE.
SET P.: 2-10 KGS/CM2. (ALT.16K)
SIZE: 3/4”~2” (WITH LEVER)

(SVPF-10SA) КЛАПАН ЖЕЛЕЗОБЕЗОПАСНОСТИ ЗАЩИТНЫЙ КЛАПАН

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITHOUT LEVER)

(SVPF-10SLR) КЛАПАН ЖЕЛЕЗОБЕЗОПАСНОСТИ ЗАЩИТНЫЙ КЛАПАН

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)

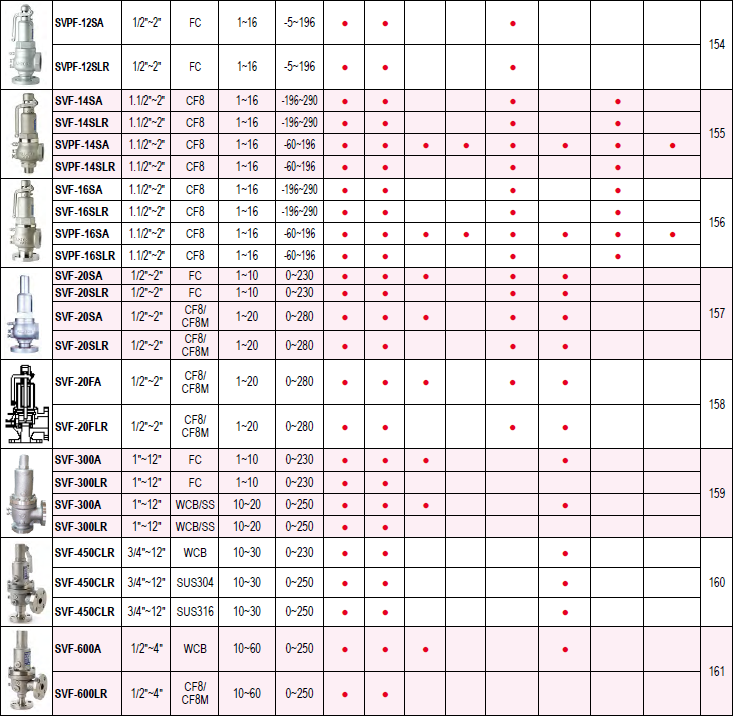

(SVPF-12SA) КЛАПАН ЖЕЛЕЗНЫЙ БЕЗОПАСНЫЙ КЛАПАН

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITHOUT LEVER)
ALT. SIZE: (1*2)

(SVPF-12SLR) КЛАПАН ЖЕЛЕЗНЫЙ БЕЗОПАСНЫЙ КЛАПАН

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY: FC. SEAT: CF8. (1*2)
DISC/SEAL: SUS304+PTFE.
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1”~2” (WITH LEVER)
ALT. SIZE: (1*2)

(SVF-14SA / SVPF-14SA) SUS304 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2) A
SEAL: PTFE (SVPF-14SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)

(SVF-14SLR/SVPF-14SLR) FULL BORE SUS304 SAFETY RELIEF VALVE SCW*SCW

FULL BORE SAFETY RELIEF VALVE
SCREWED END TO BS21, ANSI B2.1
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-14SLR)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITH LEVER)

(SVF-16SA/SVPF-16SA) SUS304 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-16SA)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITHOUT LEVER)

(SVF-16SLR/SVPF-16SLR) SUS304 КЛАПАН БЕЗОПАСНОСТИ БЕЗОПАСНОСТИ

FULL BORE SAFETY RELIEF VALVE
FLANGED 10K/150 TO SCREWED END
BODY/DISC/SEAT: CF8. (1*2)
SEAL: PTFE (SVPF-16SLR)
SET P.: 1-10 KGS/CM2. (ALT.16K)
SIZE: 1.1/2”~2” (WITH LEVER)

(SVF-20SA) КЛАПАН БЕЗОПАСНОСТИ - FLG/SCW

FULL BORE SAFETY RELIEF VALVE
INLET: FLANGED JIS10K/ANSI 150LBS
OUTLET: SCREWED END TO BS21, ANSI B2.1
BODY: FC/SUS304/SUS316. (1*2)
DISC: SUS304. SEAT: SUS304/SUS316.
MAX. P.: 20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2” (WITHOUT LEVER)

(SVF-20SLR) КЛАПАН БЕЗОПАСНОСТИ - FLG/SCW

FULL BORE SAFETY RELIEF VALVE
INLET: FLANGED JIS10K/ANSI 150LBS
OUTLET: SCREWED END TO BS21, ANSI B2.1
BODY: FC/SUS304/SUS316. (1*2)
DISC: SUS304. SEAT: SUS304/SUS316.
MAX. P.: 20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2” (WITH LEVER)

(SVF-20FA/SVF-20FLR) КЛАПАН БЕЗОПАСНОСТИ - ТИП ФЛАНЦА

FULL BORE SAFETY RELIEF VALVE
FLANGED - FLANGED END.
BODY: SCS13 / SCS14. (1*2)
SEAT: SUS304 / SUS316.
SET P.: 10-20 KGS/CM2. (300 PSI)
SIZE: 1/2”~2”
